Multi-Gas Portable Monitors
GfG G460
GfG G750
GfG G450
GfG CGM II
900
|
GfG Instrumentation - G460 Multi-Gas Monitor |
|
|
|
|
GfG G460 Ordering Information |
|
G460s Include: |
|
Part
Number |
Description |
List Price (U.S. $) |
|
|
|
|
|
|
|
|
|
|
|
|
|
Many more G850
configurations are available. Please Call for details. |
|
|
GfG Instrumentation - G450 Multi-Gas
Monitor |
 |
GfG's G450 series 1 to 4 gas
confined space monitors are capable of continuously monitoring CO, H2S,
02, and combustible gases (%LEL) in ambient air. The functional and
watertight design (IP67) incorporates an impact proof, rubberized
housing to meet the toughest environments. G450s are simple to use and
packed with features such as a large full graphic, high resolution
display, an extremely loud audible alarm (103 dB at 30 cm), bright
rotating alarm lights, factory calibrated sensors and a run time of up
to 24 hours (depending on the frequency and duration of alarms).
Approvals:
Approvals: cULus:
Class I, Division 1, Groups A, B, C, & D and ATEX II 2C EEX ia d IIC T3/T4; Zone 1, Group IIC, T3/T4.
Trust GfG for your confined space gas detection needs.
Full 3 year warranty on all
sensors. |
|
GfG G450 Ordering Information |
|
G450 Alkaline
Units Include: alkaline battery cassette, pre-calibrated
sensors, three year sensor warranty, and data logger ready. |
|
Part
Number |
Description |
List Price (U.S. $) |
|
Instrument |
Value Kit |
Confined Space Kit |
|
G450-11410 |
GfG G450 4-Gas with O2,
%LEL, CO, & H2S Sensors. |
|
|
|
|
G450-11310 |
GfG G450 4-Gas with O2,
%LEL, & COSH (CO/H2S) Sensors. |
|
|
|
|
G450-11210 |
GfG G450 3-Gas with O2,
%LEL, & H2S Sensors. |
|
|
|
|
G450-11110 |
GfG G450 3-Gas with O2,
%LEL, & CO Sensors. |
|
|
|
|
G450-11010 |
GfG G450 2-Gas with
O2 & %LEL Sensors |
|
|
|
|
G450-10010 |
GfG G450 Single Gas with
%LEL Sensor. |
|
|
|
|
G450 Rechargeable
Units Include: rechargeable NiMH battery cassette, charger,
pre-calibrated sensors, three year sensor warranty, and data logger ready. |
|
G450-11420 |
GfG G450 4-Gas with O2,
%LEL, CO, & H2S Sensors. |
|
|
|
|
G450-11320 |
GfG G450 4-Gas with O2,
%LEL, & COSH (CO/H2S) Sensors. |
|
|
|
|
G450-11220 |
GfG G450 3-Gas with O2,
%LEL, & H2S Sensors. |
|
|
|
|
G450-11120 |
GfG G450 3-Gas with O2,
%LEL, & CO Sensors. |
|
|
|
|
G450-11020 |
GfG G450 2-Gas with
O2 & %LEL Sensors |
|
|
|
|
G450-10020 |
GfG G450 Single Gas with
%LEL Sensor. |
|
|
|
|
G450 Rechargeable
Flashlight
Units Include: rechargeable NiMH flashlight battery
cassette, charger, pre-calibrated sensors, three year sensor
warranty, and data logger
ready. |
|
G450-11440 |
GfG G450 4-Gas with O2,
%LEL, CO, & H2S Sensors. |
|
|
|
|
G450-11340 |
GfG G450 4-Gas with O2,
%LEL, & COSH (CO/H2S) Sensors. |
|
|
|
|
G450-11240 |
GfG G450 3-Gas with O2,
%LEL, & H2S Sensors. |
|
|
|
|
G450-11140 |
GfG G450 3-Gas with O2,
%LEL, & CO Sensors. |
|
|
|
|
G450-11040 |
GfG G450 2-Gas with
O2 & %LEL Sensors |
|
|
|
|
G450-10040 |
GfG G450 Single Gas with
%LEL Sensor. |
|
|
|
|
GfG G450 Accessories |
 |
|
|

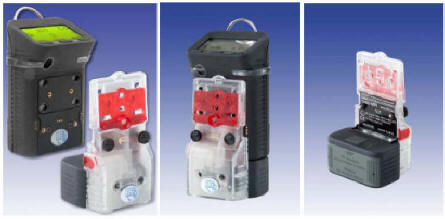

The optional detachable
motorized sample pump operates in diffusion or sample-draw mode.
The pump has its own power supply, which works independently
from the G400 series monitor. The pump offers a low flow
alarm triggered in the event of insufficient flow to the
monitor. |
|
GfG G450
Accessory Ordering Information |
|
Part
Number |
Description |
List Price (U.S. $) |
|
|
|
|
|
|
Please
call for pricing. |
|
|
|
|
|
|
|
|
|
|
|
GfG
Instrumentation - G750 Multi-Gas Monitor |
 |
GfG's G750 is a versatile multi-gas
detector for monitoring from 1 to 6 gases. Available sensor
combinations may include the detection of 02, CO, H2S,
SO2, NO, Cl2, HCN, NO, combustibles (% Volume, %LEL)
and C02. The G750 also offers user selectable choice of diffusion or internal pump sampling, smart sensor technology, up to
three user adjustable alarm points, a data-logging option which provides
storage capacity of more than 52 hours,
maintenance overdue alarm, fresh air auto zeroing and AutoCal
calibration. UL Class I, Div. I, Groups A, B, C, D. Trust GfG for your confined space gas
detection needs.
|
|
GfG G750 Ordering Information |
|
G750 Units Include: alkaline battery cassette, pre-calibrated
sensors, three year sensor warranty, and is data logger ready. |
|
Part Number |
Description |
List Price
(U.S. $) |
|
1750-018 |
GfG Model G750S
Multi-Gas Monitor with O2,
%LEL, CO, & H2S sensors, internal sampling pump, NiMH
battery, charger, carrying case, & instrument manual. |
|
|
7933-013 |
Calibration kit for
Model G750S, Includes: carrying case, gas valve, two feet of
tubing, & test gas cylinder. |
|
|
G750P-
1439W |
Model G750P
Multi-Gas Monitor with O2, CO, H2S,
Combustibles (% LEL & % by VOL), & CO2 (0 - 5%
Vol) sensors, internal sampling pump, NiMH battery,
charger, carrying case, & instrument manual. |
|
|
1750232 |
Interface cable
and plug for LPT Data Logging Connection. |
|
|
1750233 |
Data Logging
Software for Chart and Graph Evaluation. |
|
|
Many more G750
configurations are available. Please call for details. |
|
|
GfG
Instrumentation - CGM II 900 Multi-Gas Monitor |
|
|
GfG's CGM II 900 Multi-Gas Monitor combines smart sensor
technology with advanced electronics for a truly superior confined space
instrument. The groundbreaking ToxAlert sensor, without false alarms,
ensures you superior protection from hundreds of unknown toxic gases.
The AutoCal feature simplifies and reduces the time required for
calibration. With these key features and a power take off (PTO) port for
data logging, an optional mini-pump, remote alarms and other useful
accessories, the CGM provides you the protection and convenience you
need.
UL Class I, Groups A, B, C, D. Trust GfG for your confined space gas
detection needs.
|
|
CGM II 900
Ordering Information |
|
|
|
Part Number |
Description |
List Price
(U.S. $) |
|
CGM-900 |
GfG Model CGM II 900
Multi-Gas Monitor
with O2,
%LEL, & ToxAlert sensors, NiMH battery, charger, rubber
boot with shoulder strap, AutoCal, PTO port, dosimeter options
for data logging & instrument manual. |
|
|
CGM-902 |
GfG Model CGM II 902
Multi-Gas Monitor
with O2,
%LEL, ToxAlert & DualTox (CO/H2S) sensors, NiMH
battery, charger, rubber boot with shoulder strap, AutoCal,
PTO port, dosimeter options for data logging & instrument
manual. |
|
|
7799-008
Value Kit |
Confined Space Kit
for CGM II 900 & 902. Kit includes test gas cylinder, gas
valve, calibration adapter, tubing, instrument carrying case,
and hand aspirator with wand. |
|
|
Many more CGM II 900
configurations are available. Please call for details. |
|
|
